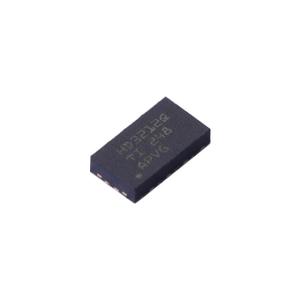

Part number HD3SS3212RKSRQ1 is manufactured by TI Company and distributed by AYE. As one of the leading distributors of electronic products, we carry many electronic components from the world's top manufacturers.
For more information on HD3SS3212RKSRQ1 detailed specifications, quotations, lead times, payment terms and more, please do not hesitate to contact us. In order to process your enquiry, please add the quantity to your message.
Product details/Parameters
| Supply Voltage (DC) | 3.00 V (min) |
| Supply current | 600 μA |
| Number of channels | 2 |
| Number of pins | 20 |
| Data rate | 480 Mbps |
| Bandwidth | 8 GHz |
| Operating temperature (Max) | 105 ℃ |
| Operating temperature (Min) | -40 ℃ |
| 3dB bandwidth | 8 GHz |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Part of the recommended inventory list |
| HD3SS3212RKSR | TI | VQFN-20 |
| HD3SS3212IRKSR | TI | VQFN-20 |
| HD3SS3220IRNHT | TI | WFQFN-30 |
| HD3SS3220RNHR | TI | WFQFN-30 |
| HD3SS3220RNHT | TI | WQFN-30 |
| HD3SS3220IRNHR | TI | WFQFN-30 |
| HD3SS3212IRKST | TI | QFN-20 |
| HD3SS3202IRSVR | TI | QFN-16 |
| HD3SS3212RKST | TI | VQFN-20 |
| HD3SS3202RSVT | TI | QFN-16 |
The HD3SS3212-Q1 is a high-speed, bidirectional passive switch in a multiplexer or demultiplexer configuration. It is intended for USB Type-C™ applications supporting USB 3.2 Gen 1 and Gen 2 data rates. The SEL control pin switches between two differential channels (Port B to Port A or Port C to Port A). The HD3SS3212-Q1 is a general-purpose analog differential passive switch. The device is suitable for any high-speed interface application requiring differential signals with a 0V to 2V common-mode voltage range and a differential amplitude of up to 1800mVpp. The adaptive tracking function ensures that the channels remain constant over the entire common-mode voltage range. The excellent dynamic characteristics of the device allow high-speed switching with minimal degradation of the signal eye diagram and no significant increase in jitter. It consumes less than 1.65mW of power in operation. The OEn pin has a shutdown mode, which enables power consumption of less than 0.02μW.
advantages
1. Parts source determine price, The source of our parts is very initial.
2. Price can be negotiable based on quantity; delivery terms;
3. We will try to help customers to reduce freight charge.
4. The price of products changes frequently, if you need to quote price, please inform the model which you need,we will give you the reasonable price as the standard quoted price in the same day
